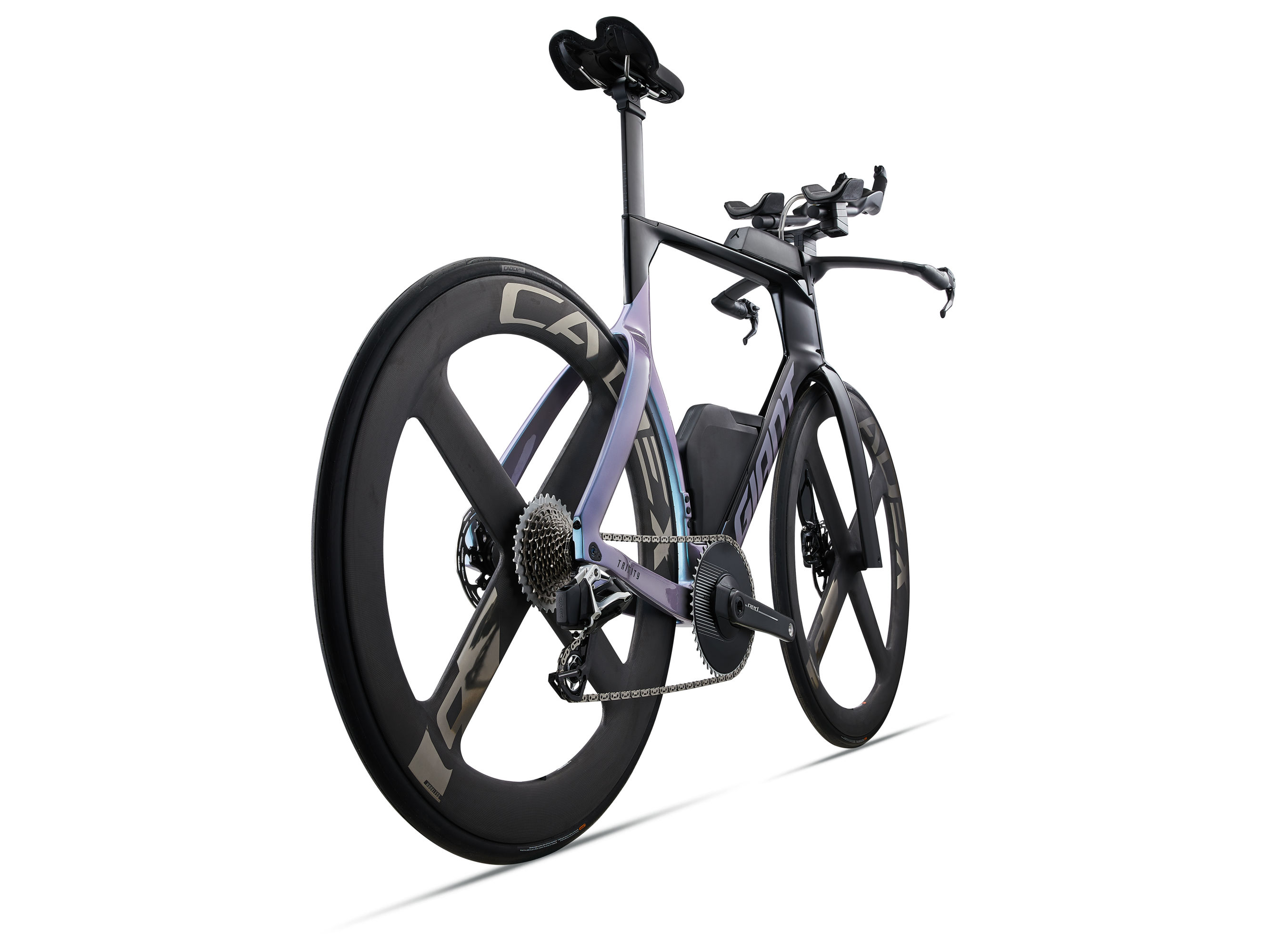

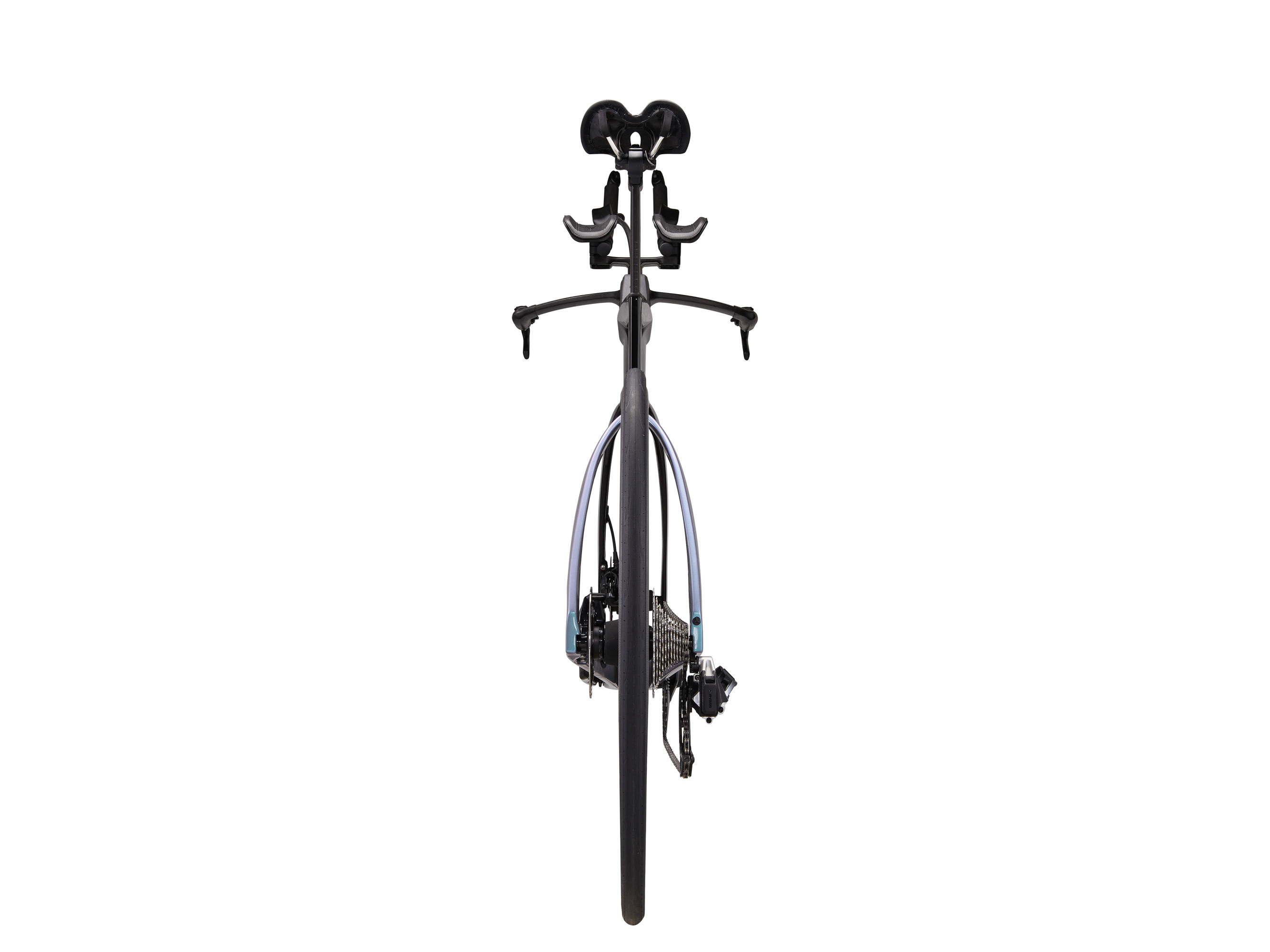

Trinity Advanced SL 0
-
Detail
Key Featured Information
Full speed power

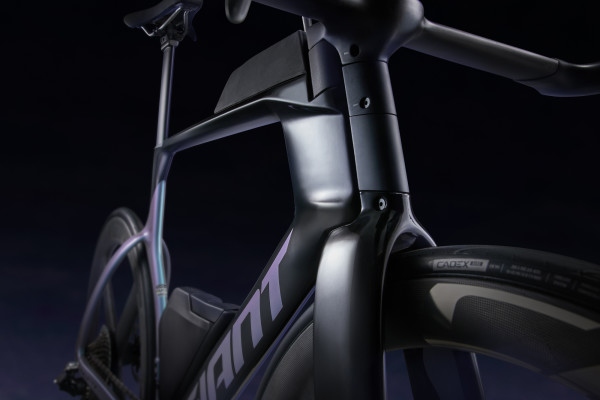

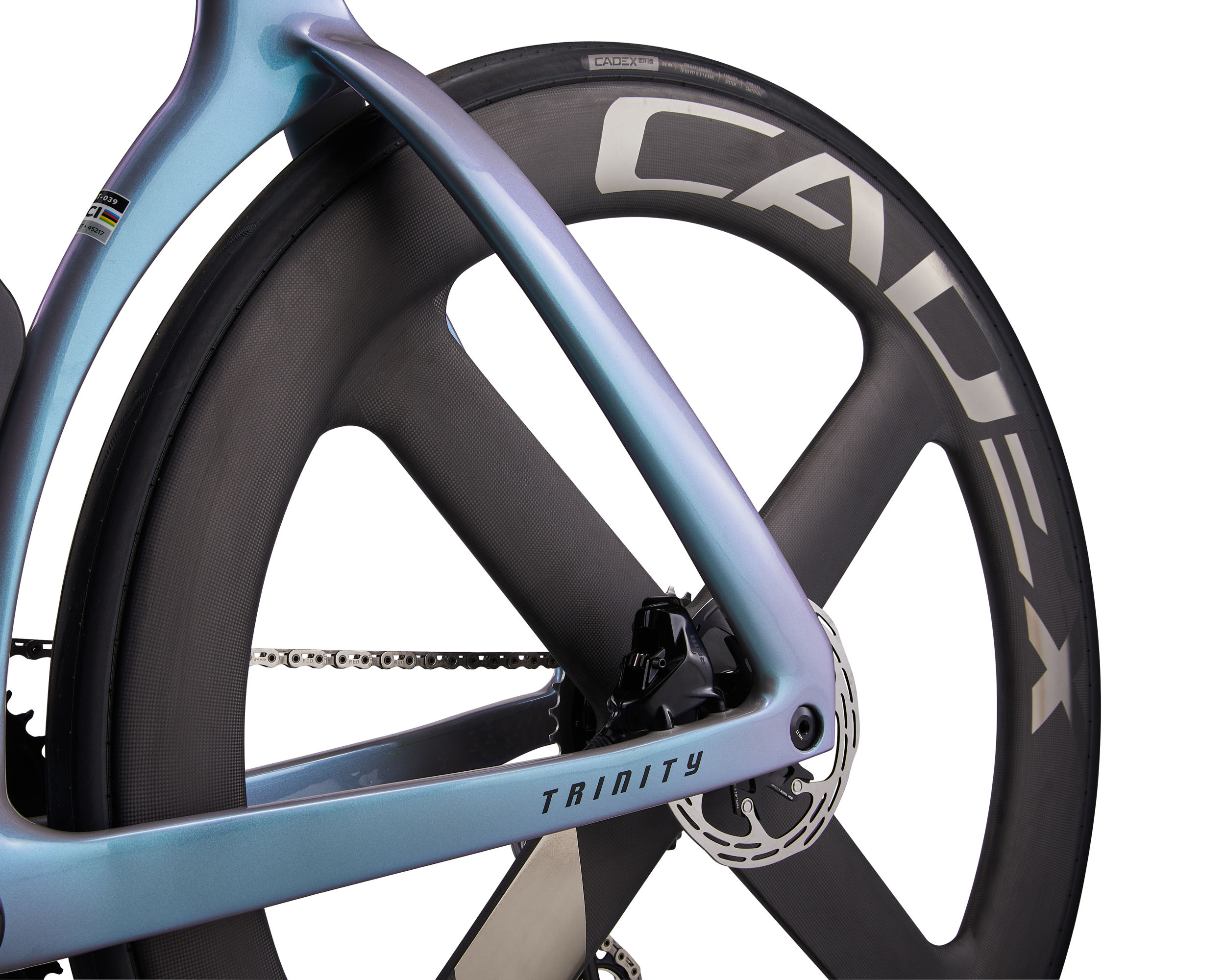

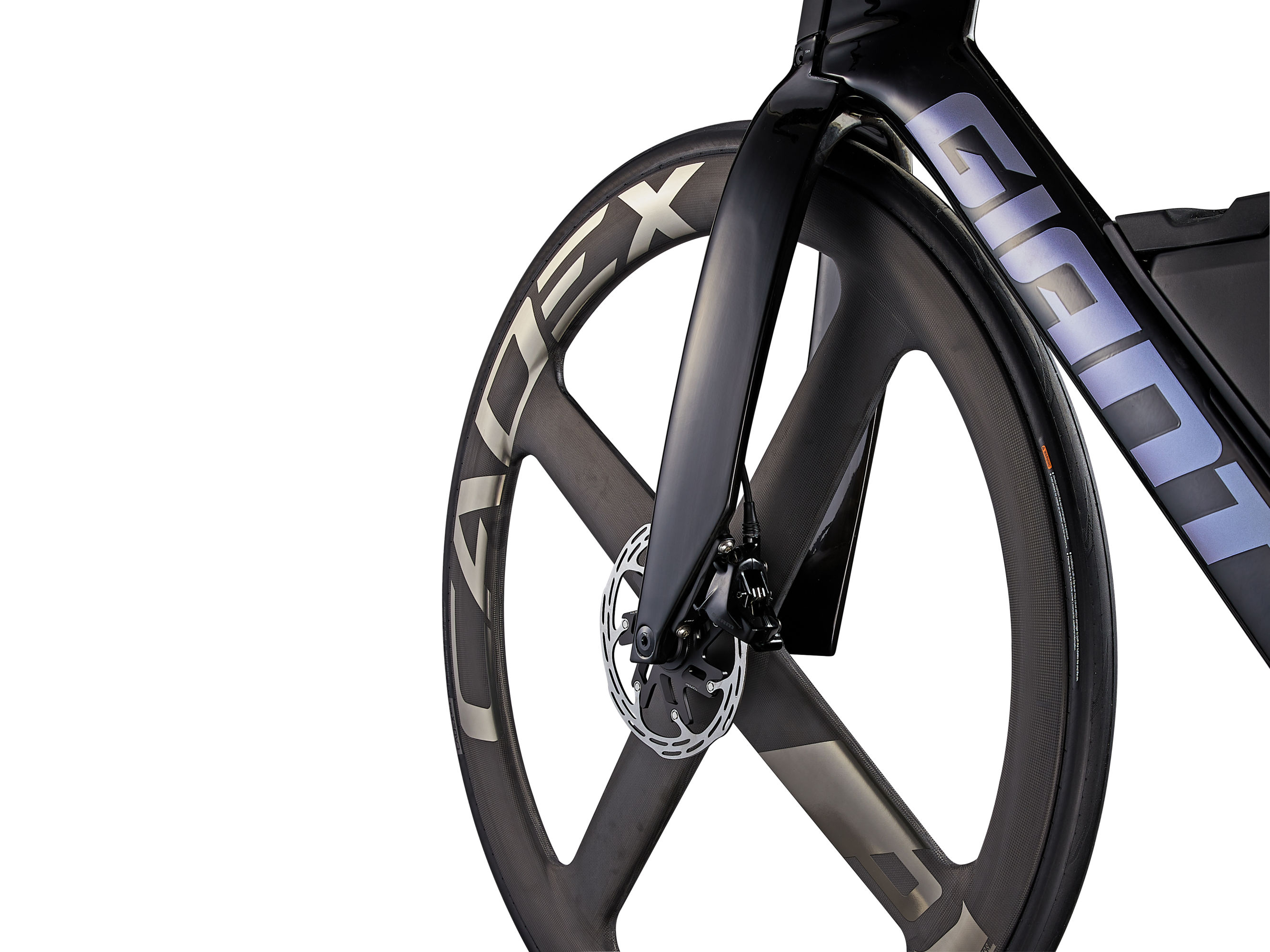

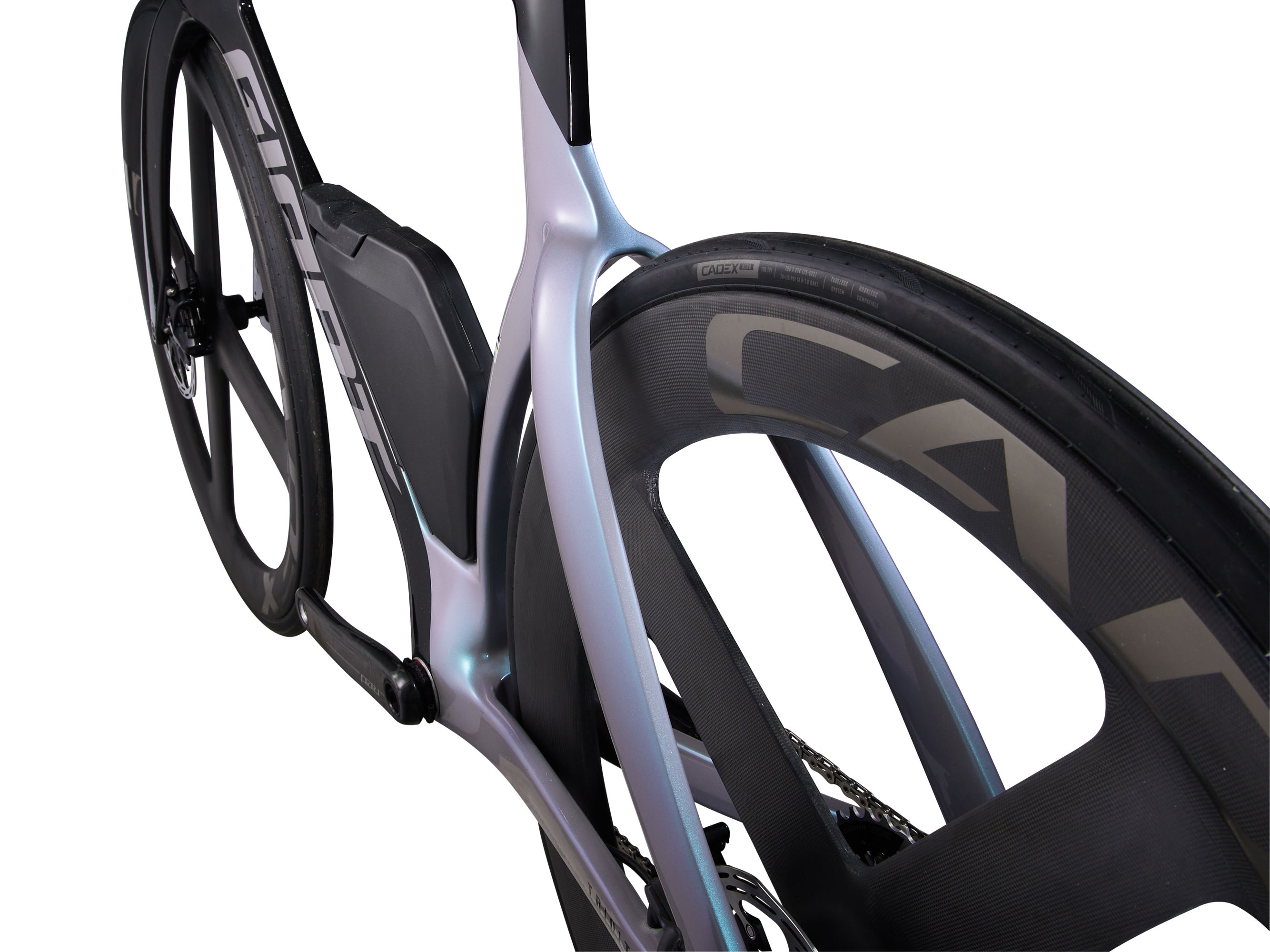

The new carbon fiber composite frame is designed for full-speed attack and precise control. It is 558 grams lighter and provides faster climbing performance. The integrated disc brake makes cornering and descent more confident. The improved compliance makes riding smoother. The supply box and hydration system integrated with the aerodynamics of the whole vehicle help athletes maintain an aerodynamic riding posture and move forward at full speed while replenishing energy.
Super effective aerodynamics

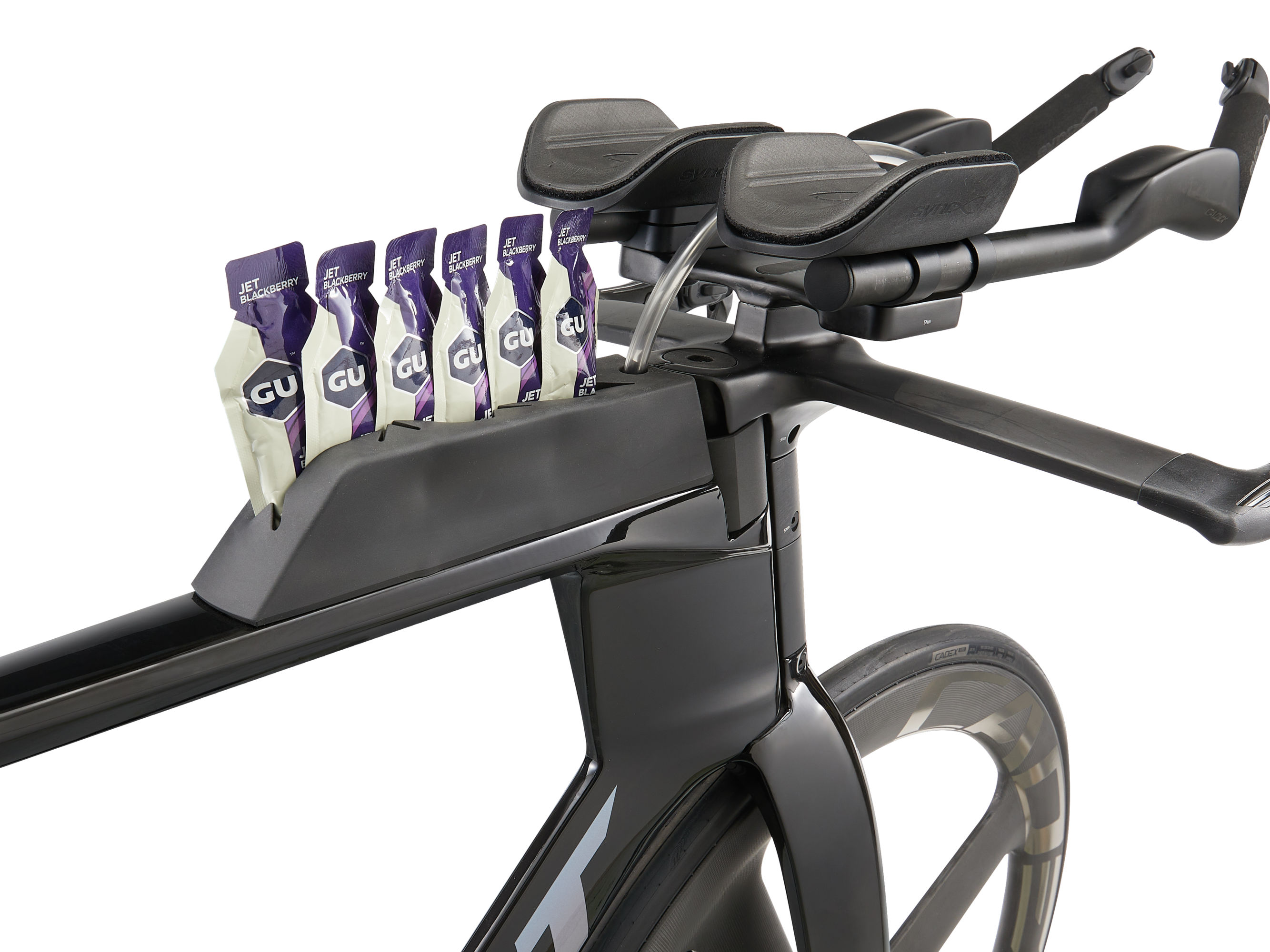

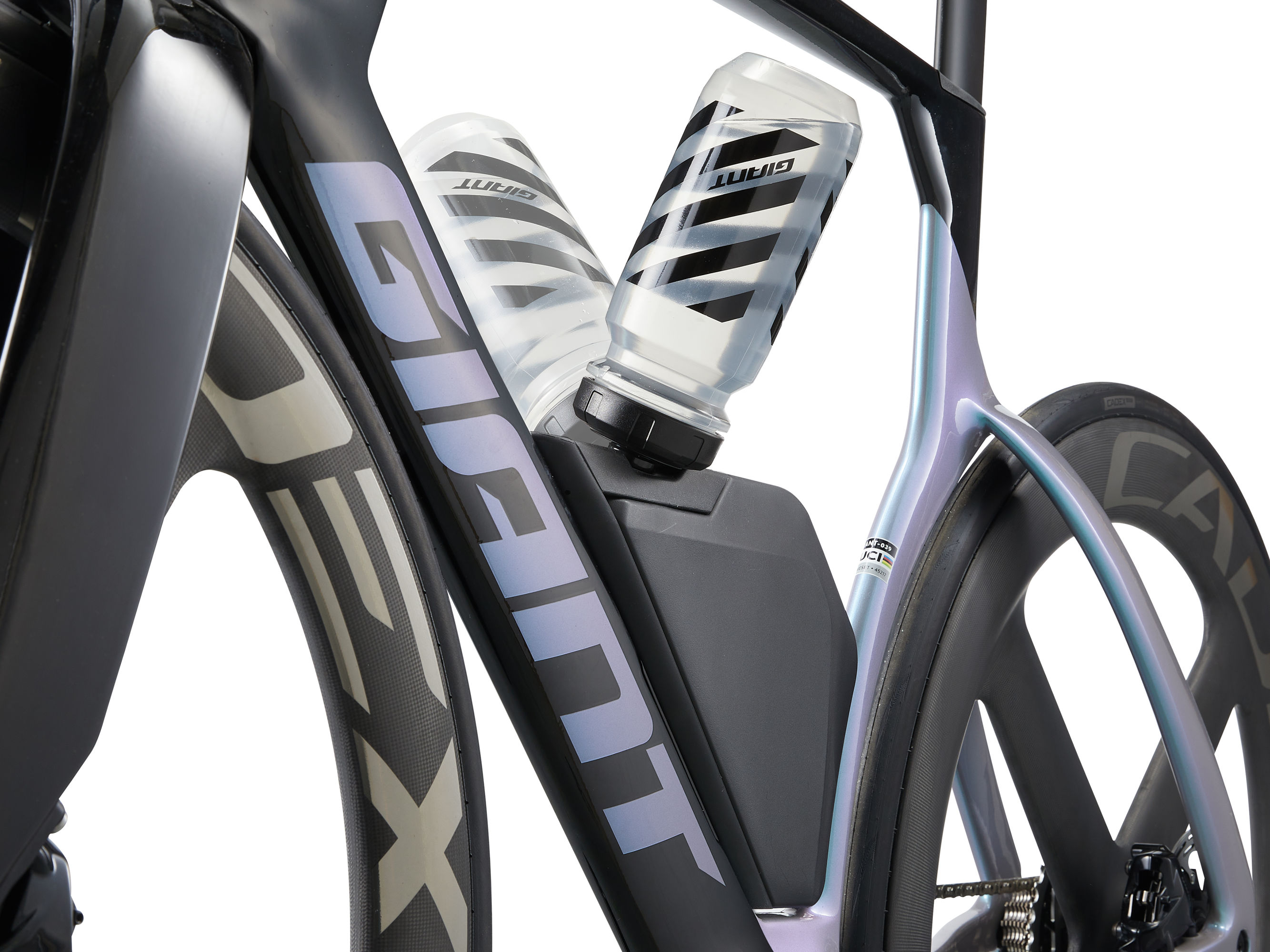

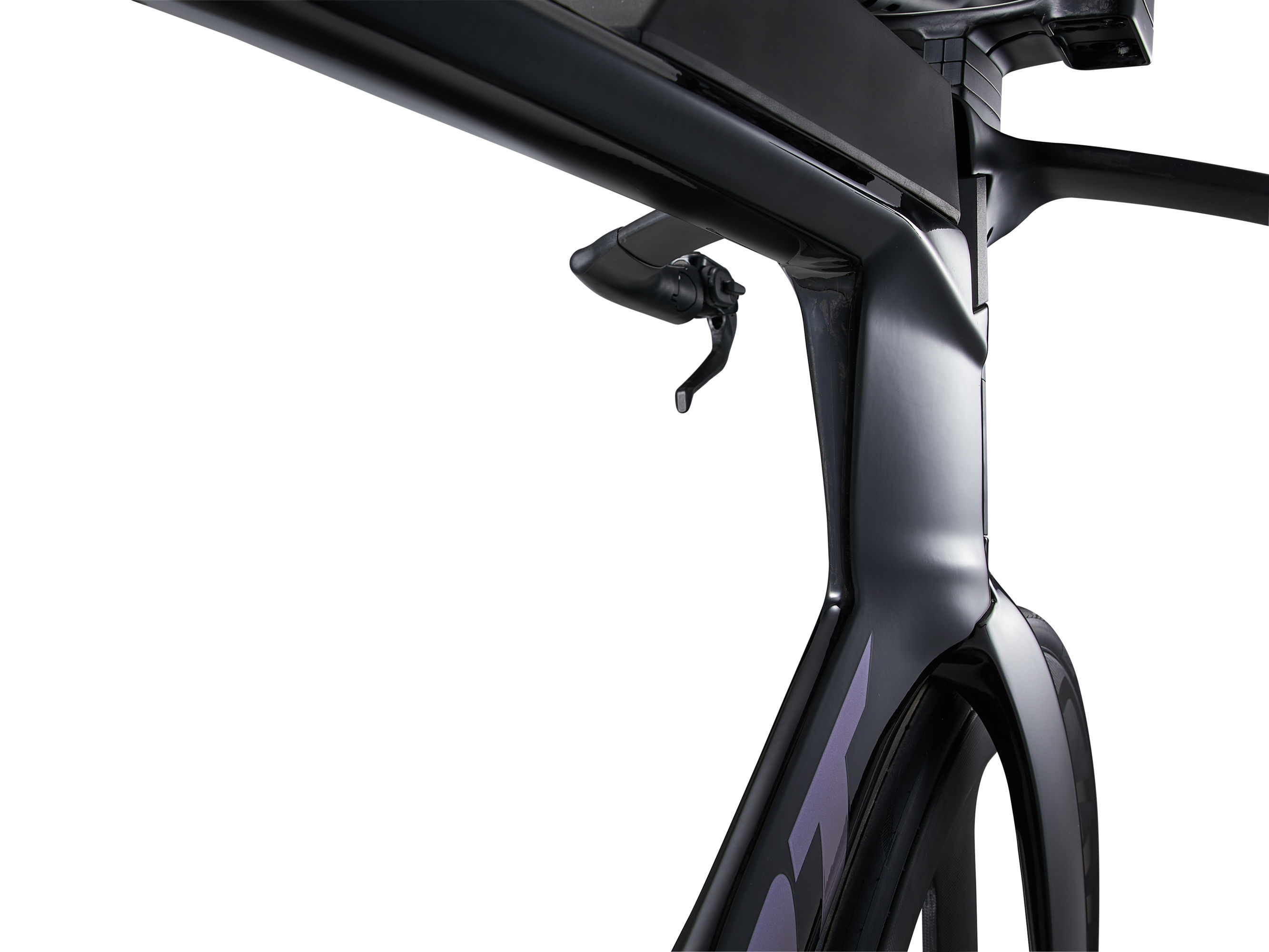

The oval cross-section tube is made by aerodynamic tube forming technology, which has an aerodynamic advantage of 5.9 watts and a more efficient rigidity-to-weight ratio compared to the previous generation Trinity. In addition, the water replenishment system, aerodynamic water bottle and supply box have also been aerodynamically optimized, and it is a replenishment system integrated with the aerodynamics of the entire vehicle.
Personalized cockpit

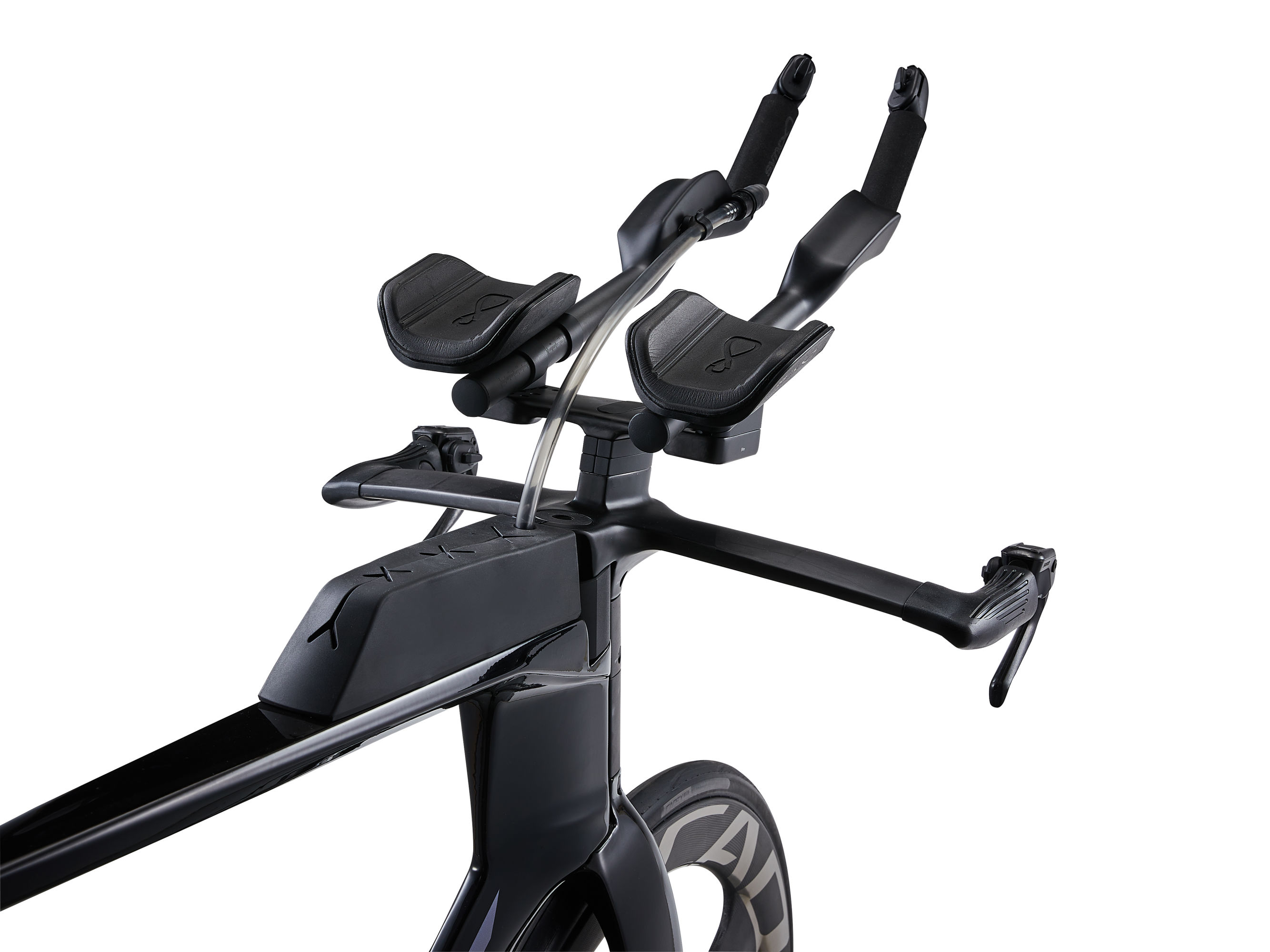

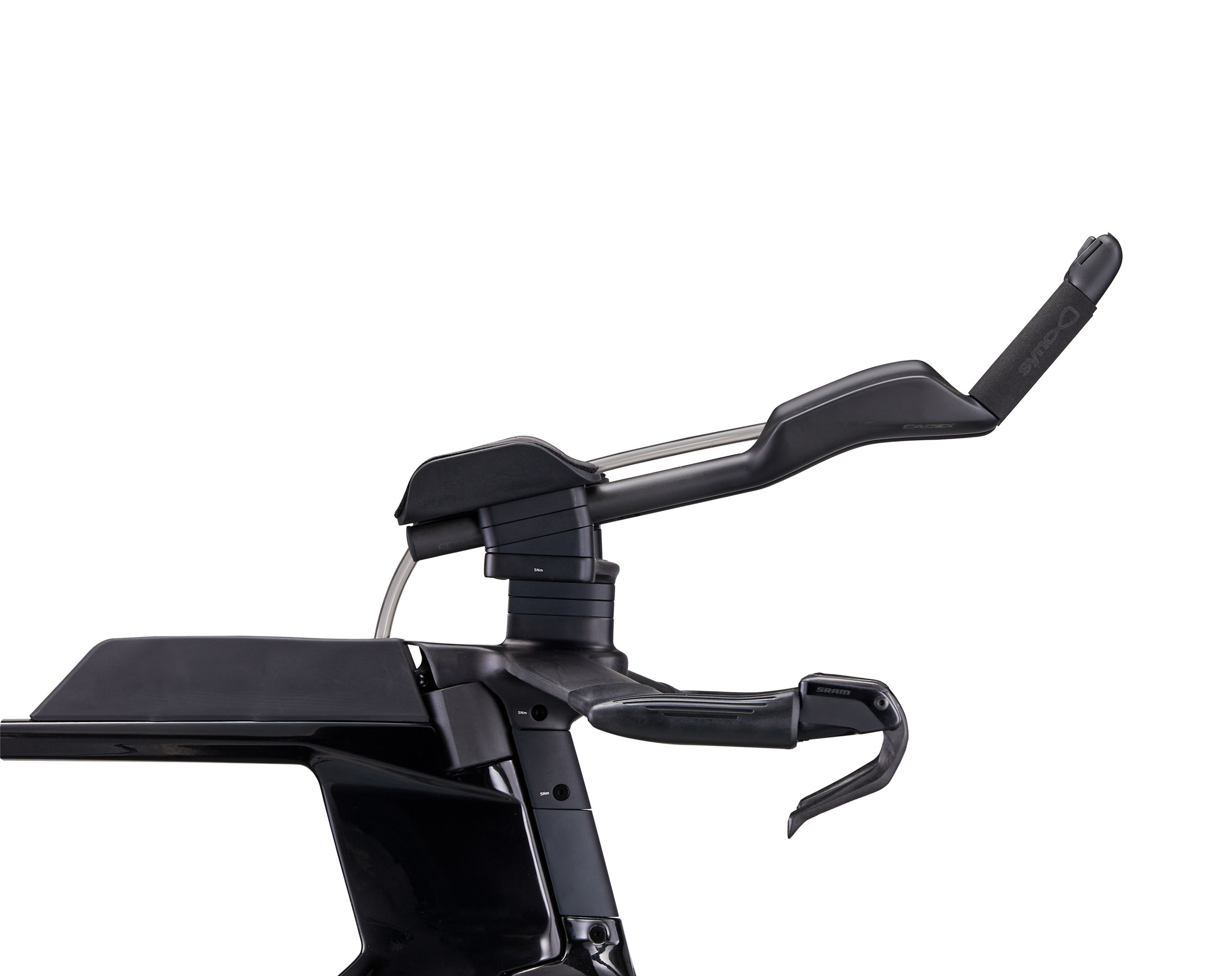

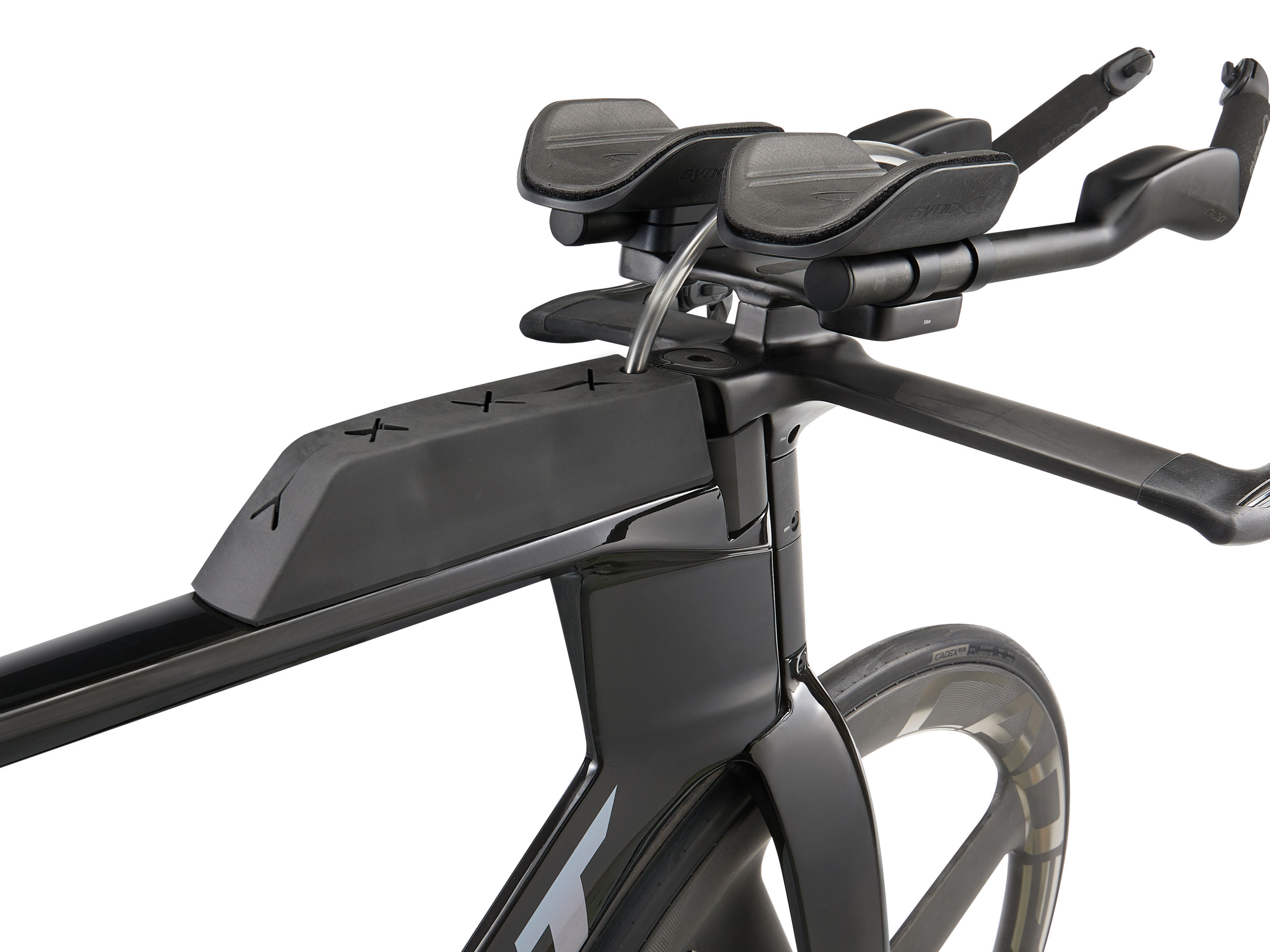

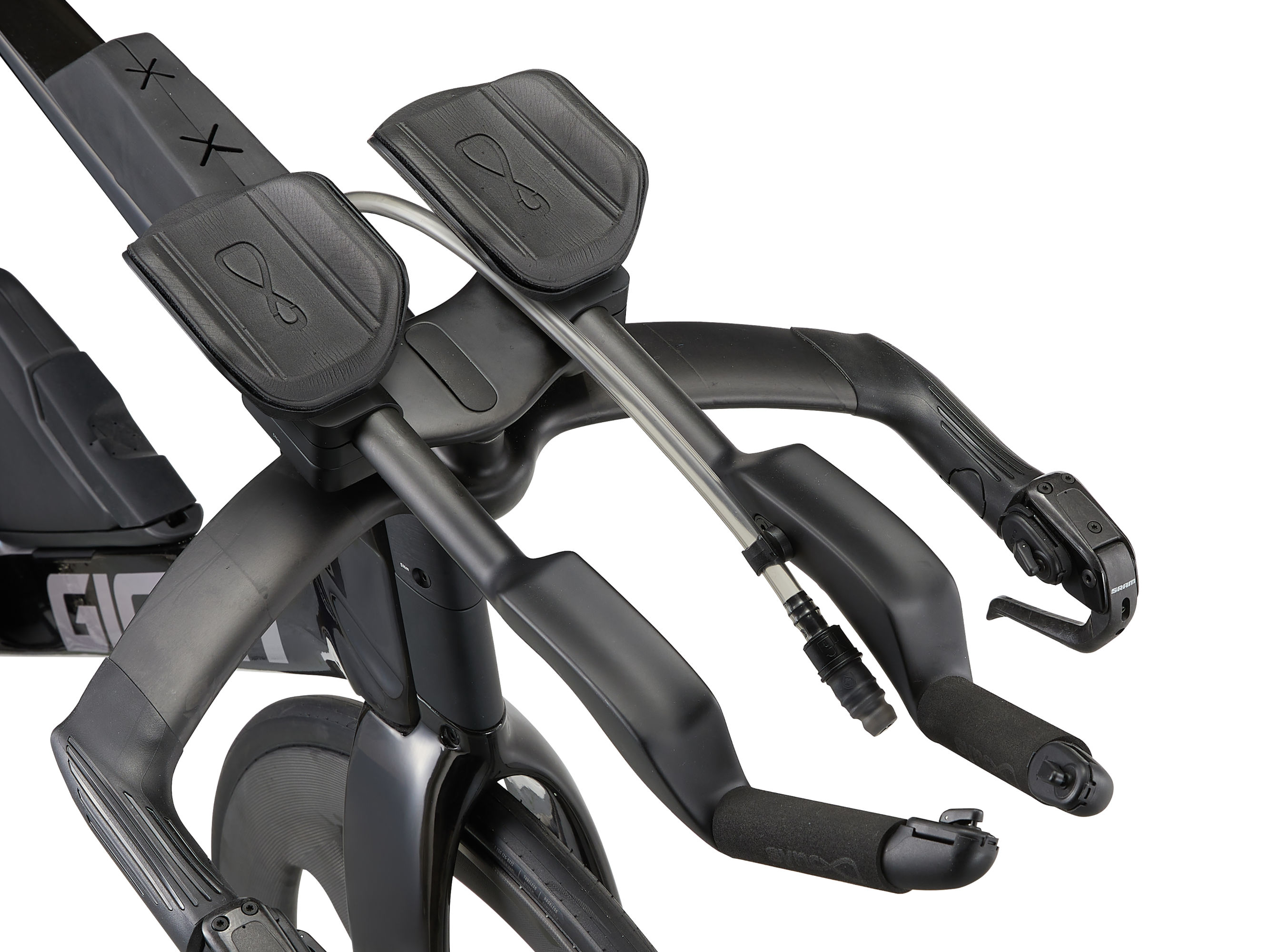

The new Trinity has a wider range of adjustments than the previous generation Trinity model - including four seat tube offset positions (51mm range) and 24 times more aerobar positioning options (stack, reach, angle and width) using a simple two-screw mechanism, making it easier to dial in the best riding position for riders of all body shapes.
Frame geometry
Frame geometry is for reference only, please contact Giant authorized stores; dimensions may vary in different countries.
-
- XS
- 159 cm 169 cm
-
- S
- 166 cm 176 cm
-
- M
- 173 cm 182 cm
-
- L
- 181 cm 191 cm
XS S M L A Seat (Stand) Tube Length (mm) 482 495 525 550 B Seat (Stand) Tube Angle 77.0° 77.0° 77.0° 77.0° C Upper tube length (mm) 510 530 554 579 D Head tube length (mm) 85 105 125 145 E Head tube angle 72.0° 73.0° 73.0° 73.0° F Front fork (mm) 40 40 40 40 G Trail (mm) 69.4 63 63 63 H Front and rear wheel track (mm) 974 988 1013 1039 I Chainstay length (mm) 405 405 405 405 J Bottom bracket drop height (mm) 70 70 70 70 K Height from head to bottom bracket (mm) 490 513 532 551 L Length from head to bottom bracket (mm) 397 412 432 452 M Height from top tube to ground (mm) 758 786 814 838 N Handle width (mm) 400 400 400 400 P Crank length (mm) 160 165 170 172.5 Q Wheel size 700C 700C 700C 700C R Elbow rest upward range (TRI) 629-709 | (TT) 582-662 (TRI) 653-733 | (TT) 605-685 (TRI) 672-752 | (TT) 624-704 (TRI) 691-771 | (TT) 643-723 S Elbow extension range (TRI) 323-398 | (TT) 339-414 (TRI) 340-415 | (TT) 355-430 (TRI) 360-435 | (TT) 375-450 (TRI) 380-455 | (TT) 395-470 V Pad Reach Min (mm) 323 338 358 378 W Pad Reach Max (mm) 398 413 433 453 -
-
