Defy Advanced E+ Elite 1
-
Detail
Key Featured Information
Natural riding feeling

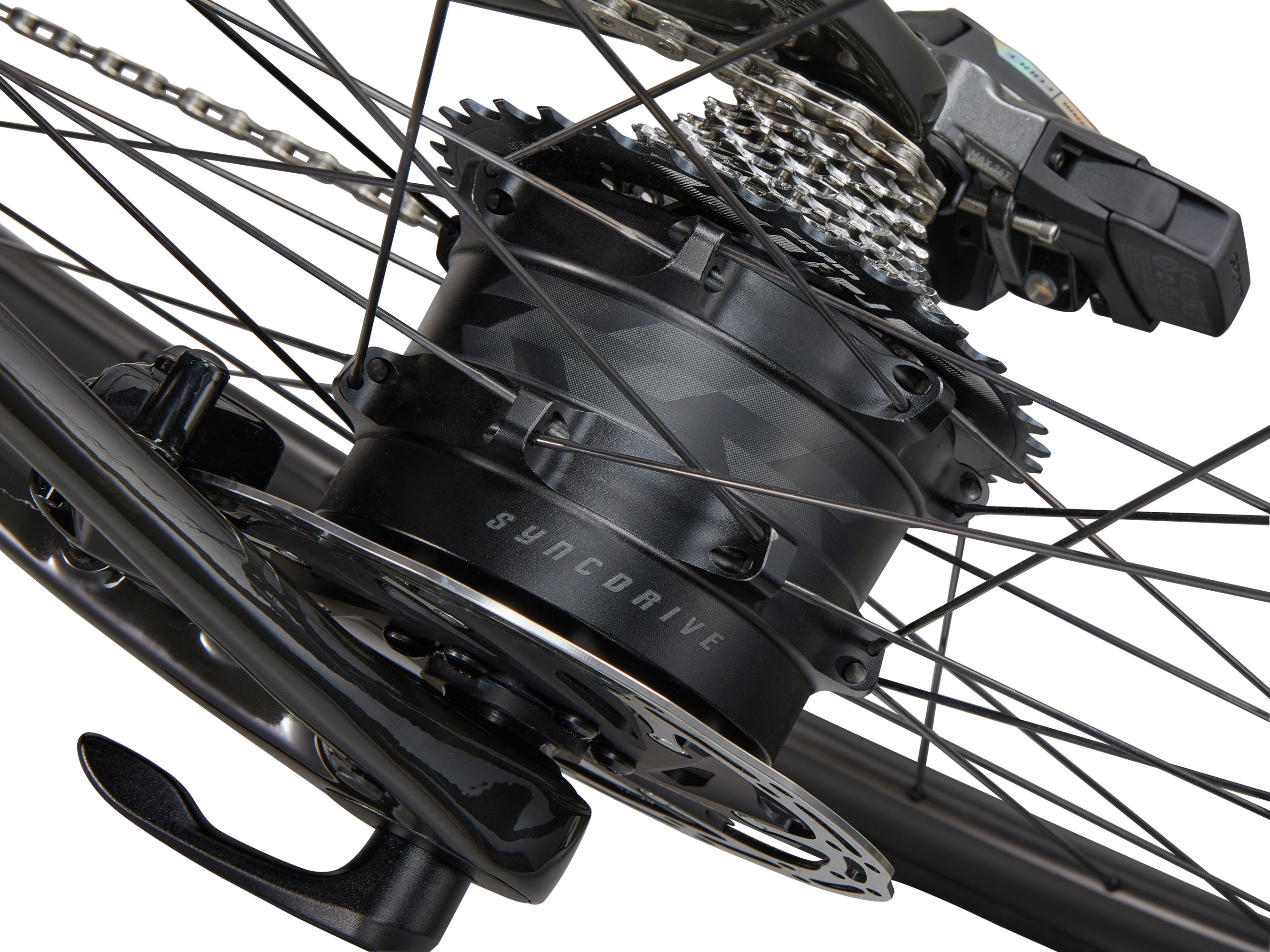

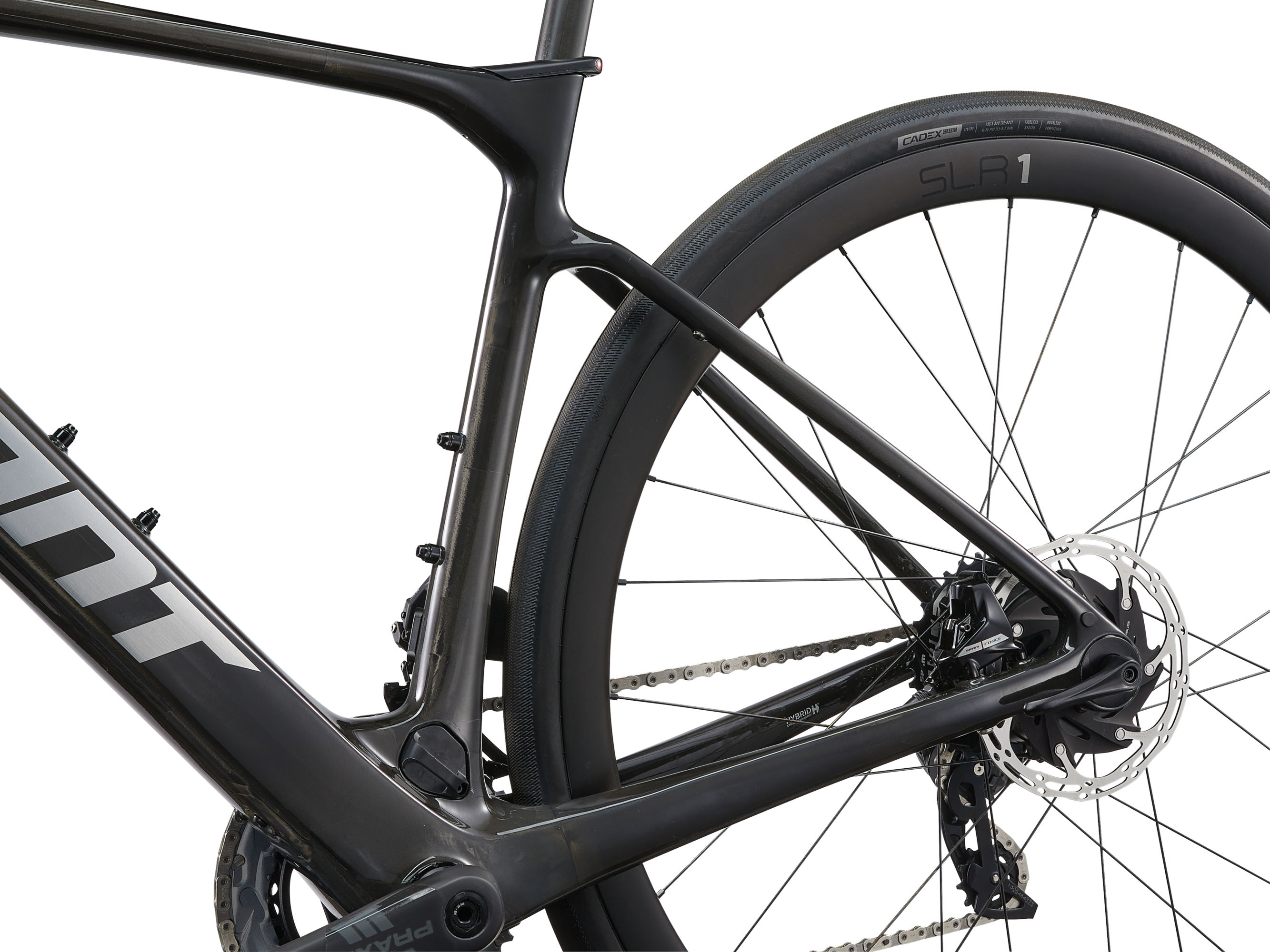

The SyncDrive Move Plus motor is integrated into the rear wheel, delivering 30Nm of power directly to the rear wheel (equivalent to 75Nm from a mid-mounted motor). Weighing just 1.7kg, it is tuned specifically for the pedaling pattern of high-performance road riding, with minimal energy loss and more torque at high speeds. It also provides a natural feel when accelerating or maintaining steady momentum, and no motor drag when coasting or gliding.
System Integration

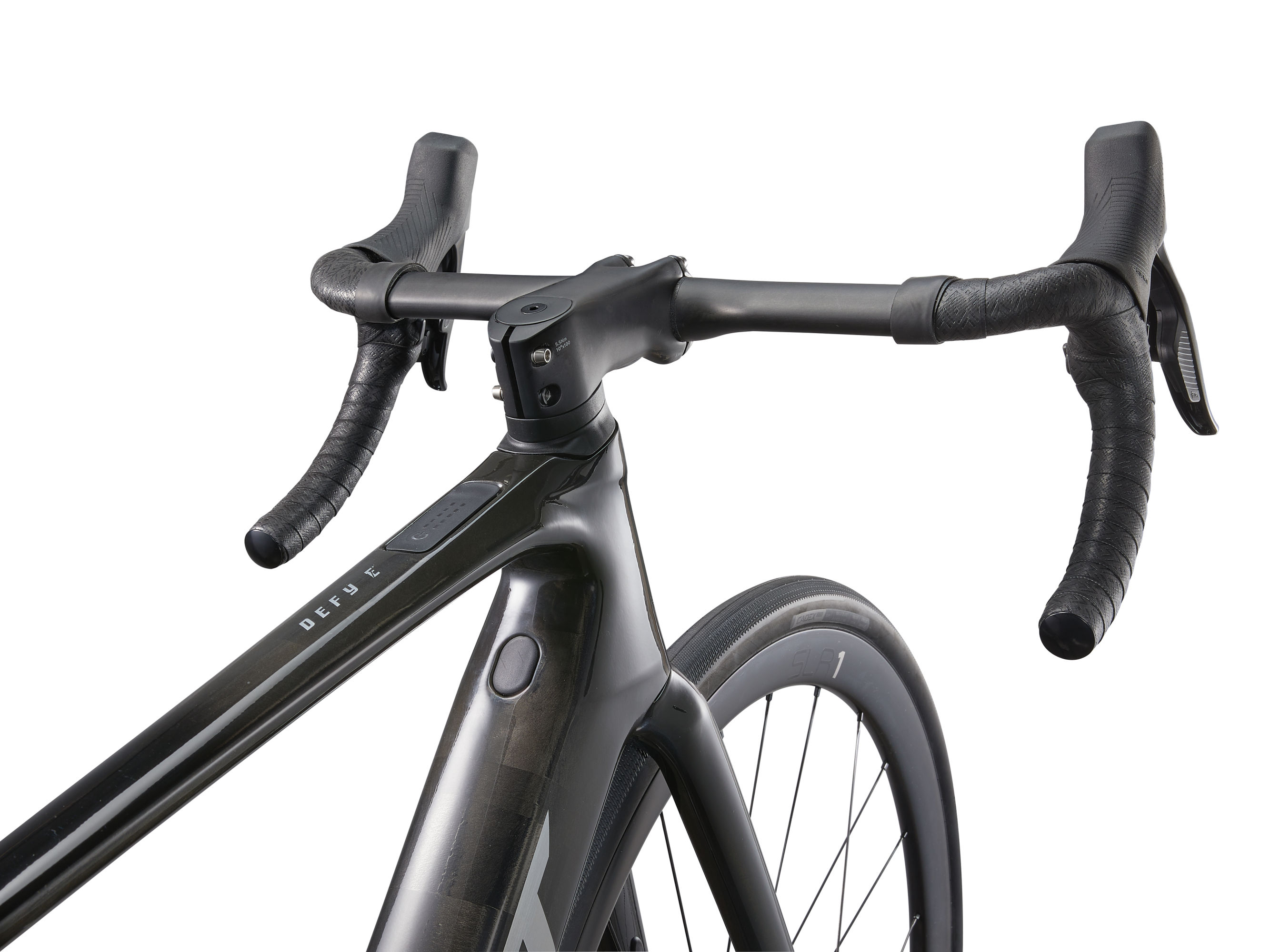

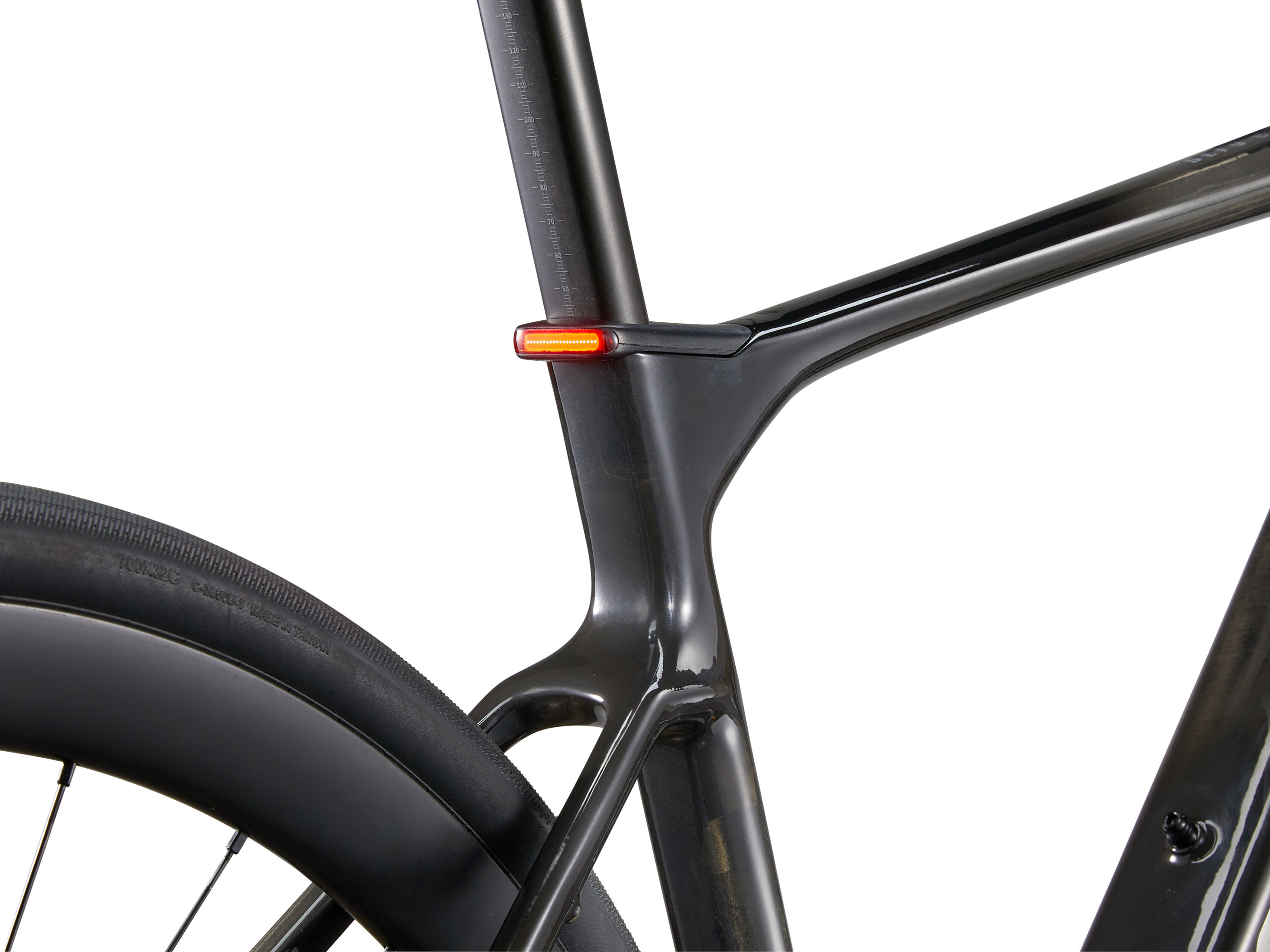

The down tube integrated EnergyPak 400 battery system weighs only 2.3 kg and is designed to meet the riding needs of E-Bike. The RideControl Go button mounted on the top tube can quickly and easily turn on or off and change the power assist mode. Smart assist technology uses three sensors to accurately measure the power applied to the pedals and provide the right amount of output for a smooth and natural riding experience. And with SRAM wireless electronic shifters and integrated taillights.
Top road performance

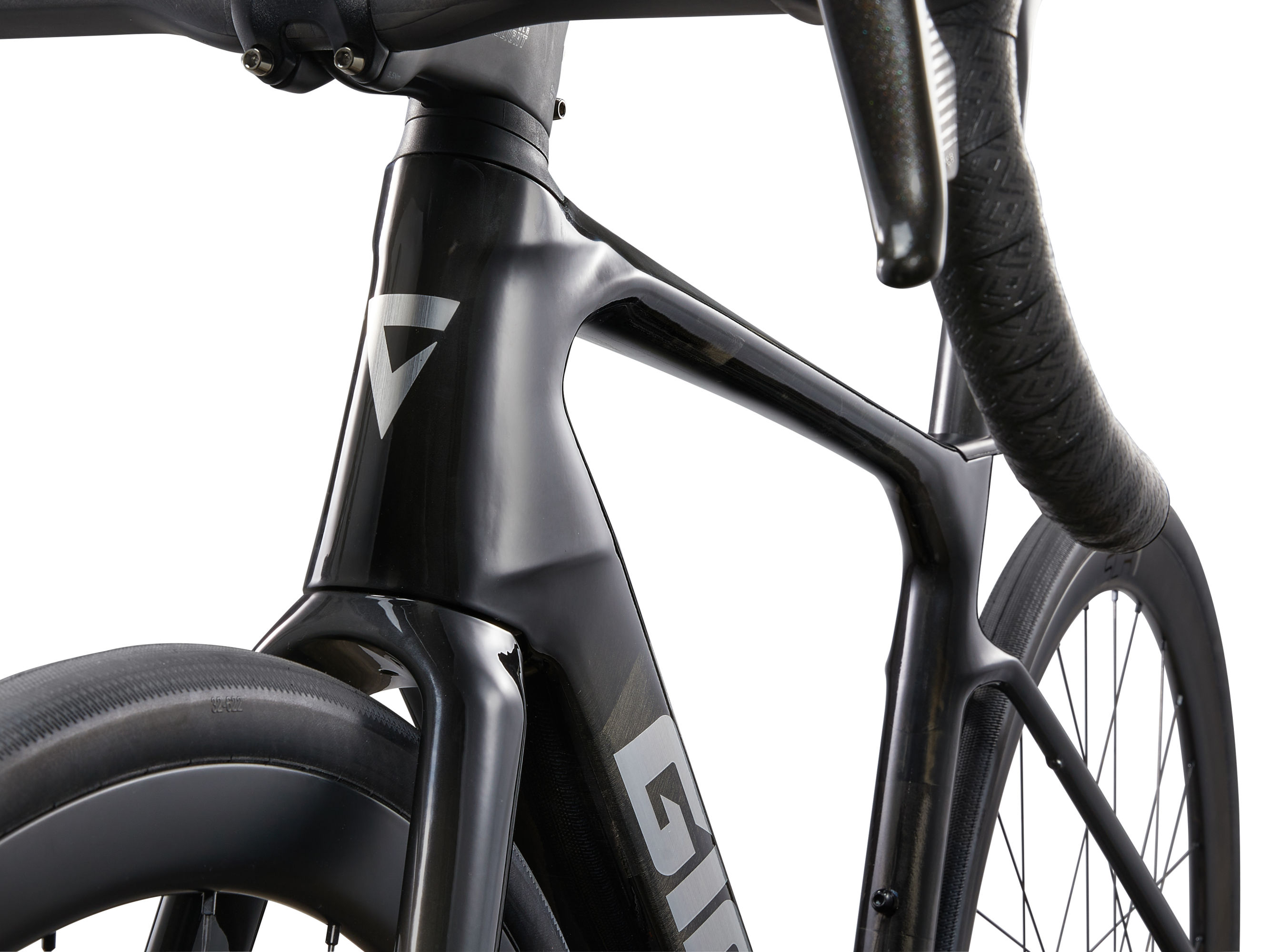

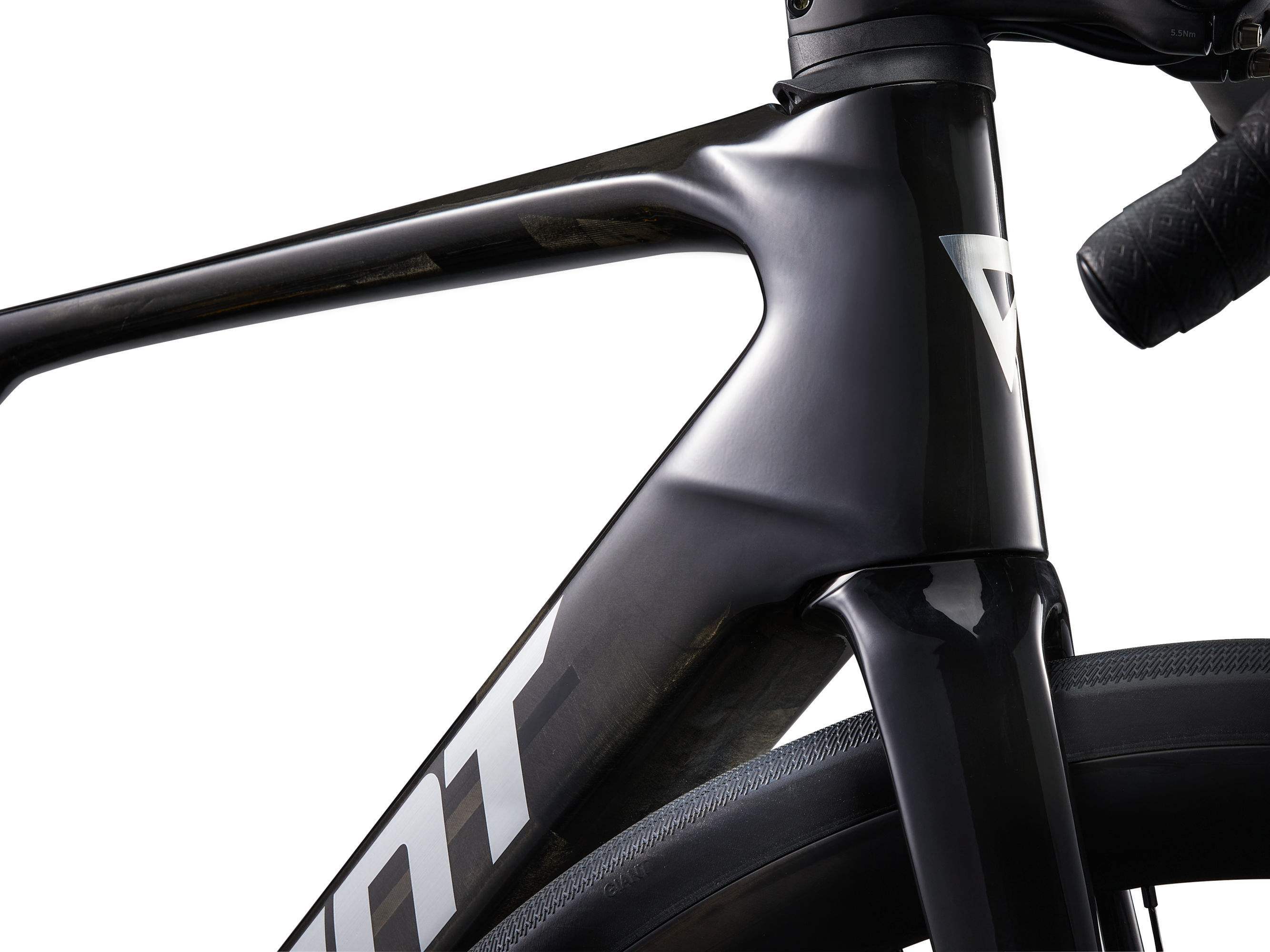

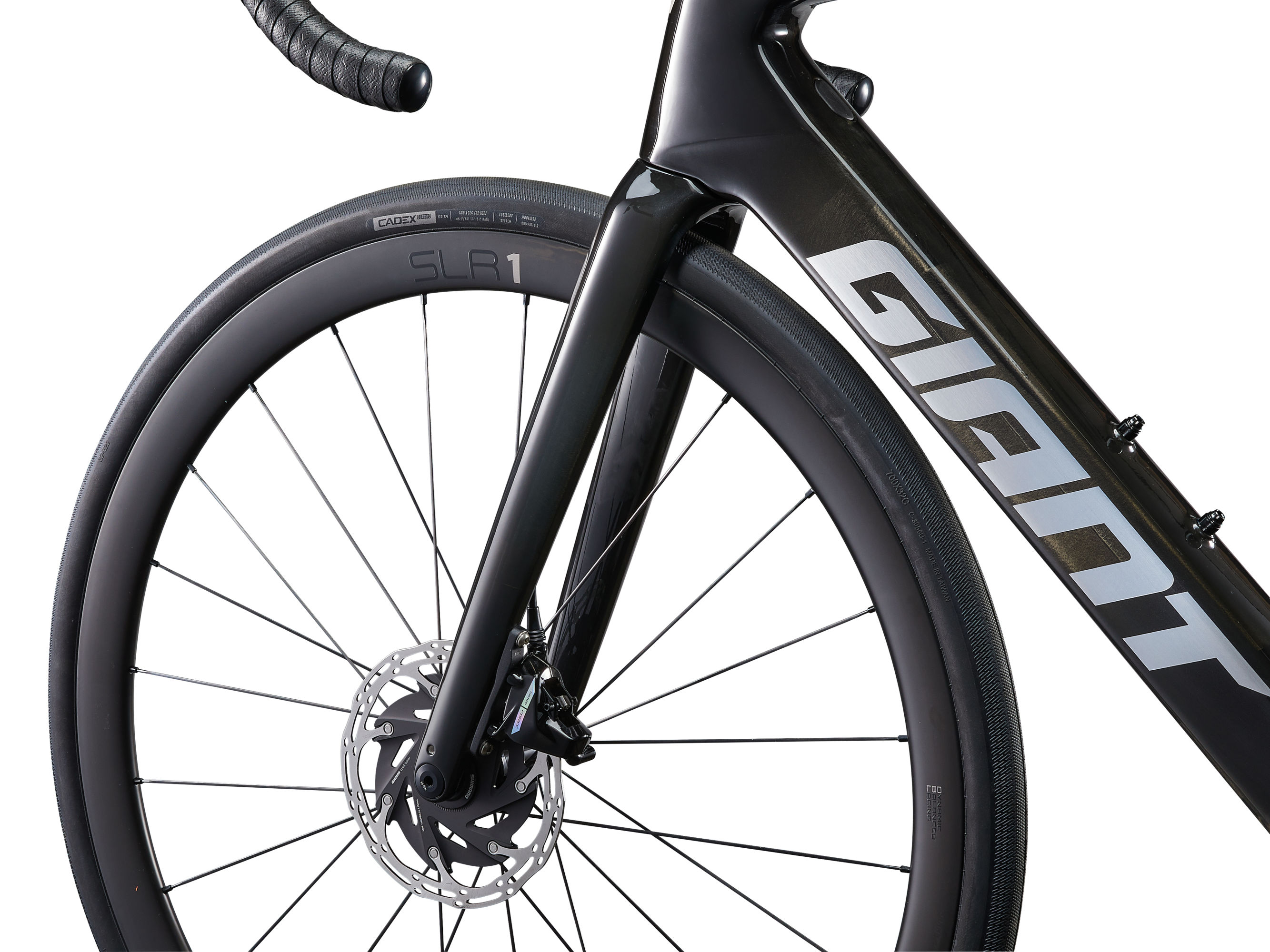

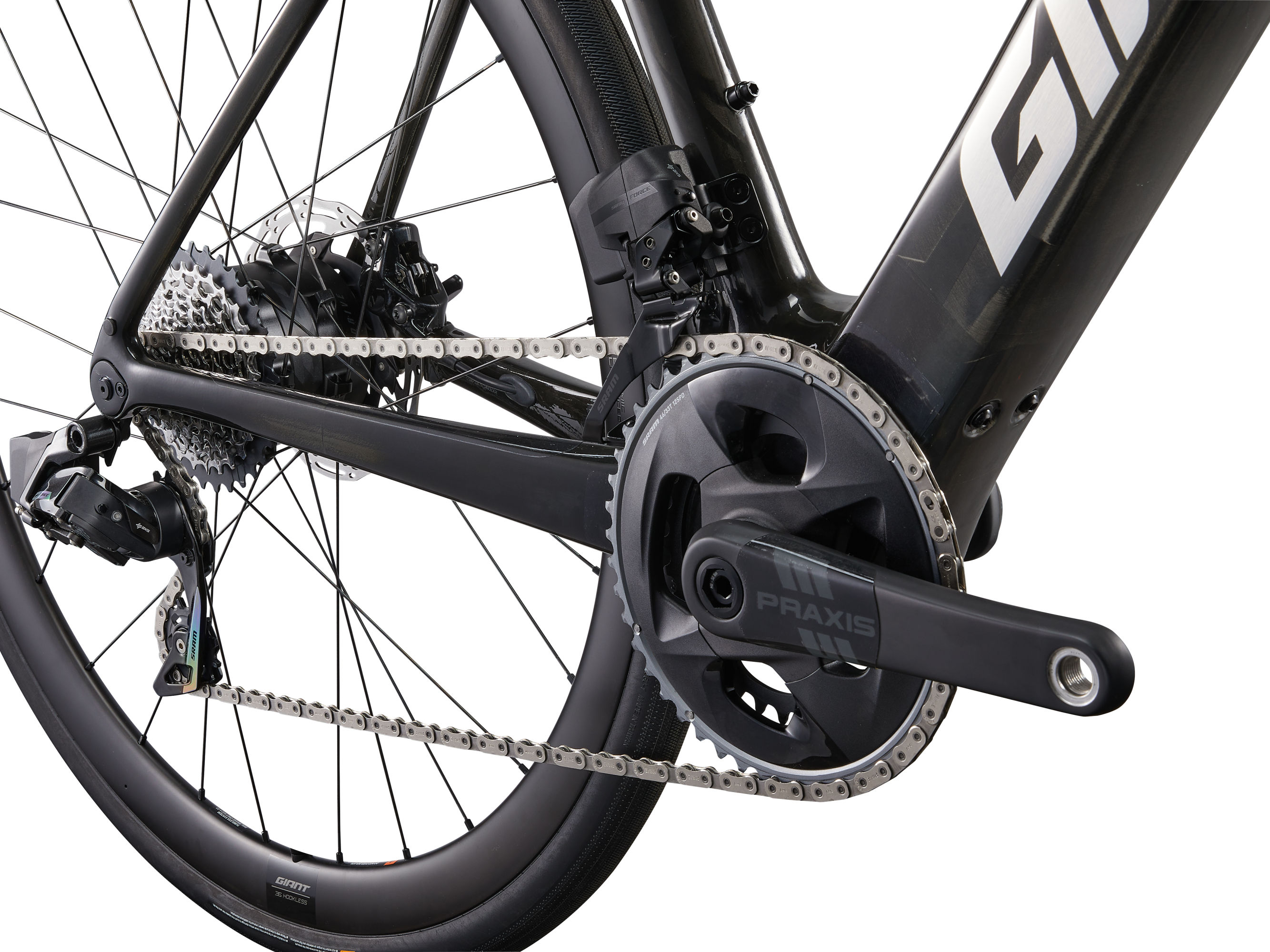

A lightweight carbon fiber frame, handlebars and D-Fuse seatpost, SLR 1 carbon fiber wheels with all-road 38mm tubeless tires and a wireless electronic drivetrain all contribute to the smooth, efficient ride that is the hallmark of the Defy road bike range.
Range
How many kilometers can the battery travel after a single full charge?
The range of a single battery will vary greatly depending on factors such as rider weight, load weight, riding terrain, and tires used.
The column below lists a rough range, divided into "Extreme", "Good", and "Ideal"; "Extreme" usually occurs when carrying heavy objects, climbing continuously, and in strong headwinds.
Energypak 400/SyncDrive Move
Frame geometry
Frame geometry is for reference only, please contact Giant authorized stores; dimensions may vary in different countries.
-
- S
- 166 cm 174 cm
-
- M
- 172 cm 180 cm
-
- ML
- 178 cm 186 cm
-
- L
- 184 cm 192 cm
S M ML L A Seat (Stand) Tube Length (mm) 445 480 515 535 B Seat (Stand) Tube Angle 74.0° 73.5° 73.0° 73.0° C Upper tube length (mm) 530 545 560 575 D Head tube length (mm) 130 145 167 187 E Head tube angle 71.5° 72.5° 72.5° 72.5° F Front fork (mm) 50 50 50 50 G Trail (mm) 65.1 58.6 58.6 58.6 H Front and rear wheel track (mm) 994.3 995.2 1007.5 1022.7 I Chainstay length (mm) 420 420 420 420 J Bottom bracket drop height (mm) 80 80 75 75 K Height from head to bottom bracket (mm) 542.2 560.2 576.1 595.2 L Length from head to bottom bracket (mm) 374.3 378.9 383.6 392.8 M Height from top tube to ground (mm) 716 745.5 779 799 N Handle width (mm) 400 420 420 440 O Faucet length (mm) 90 100 110 110 P Crank length (mm) 170 172.5 172.5 175 Q Wheel size 700C 700C 700C 700C -
-
